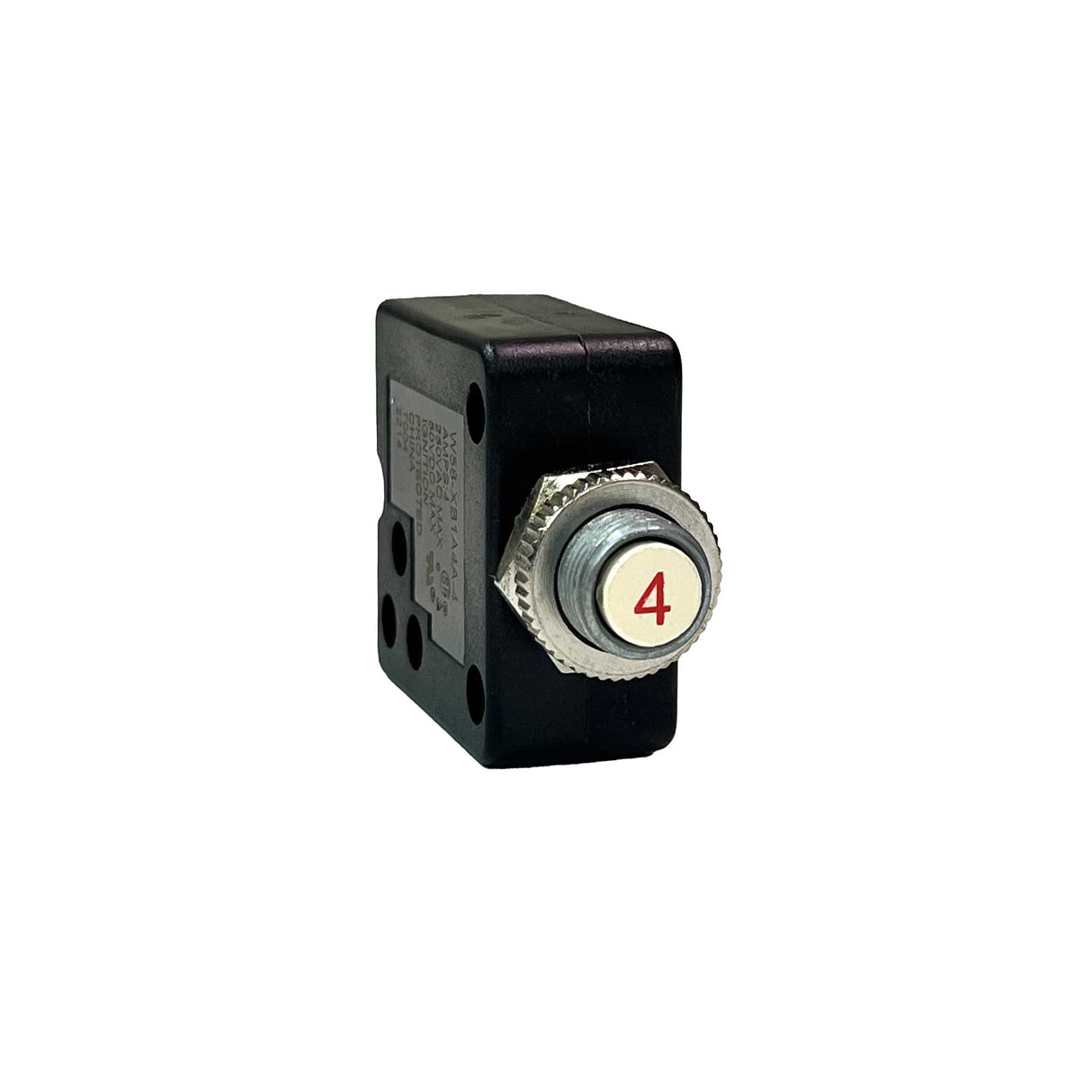

4 amp Reset Breaker
This 4-amp push-button reset breaker is an OEM thermal circuit breaker used on most PowerTech Generators. Designed for easy access and reliable circuit protection, it is typically mounted on the generator’s control box. The breaker features a two-post quick-connect terminal on the back and a white push button with red trip markings for clear status visibility. When tripped, simply press the button to reset and restore power.
Key Features:
Breaker Type: Thermal push-to-reset
Voltage Rating: 250 VAC / 50 VDC
Current Rating: 4 amps
Interrupt Capacity: 2000A at 50 VDC or 1000A at 250 VAC
Trip Time at 200% Load: 10 to 45 seconds

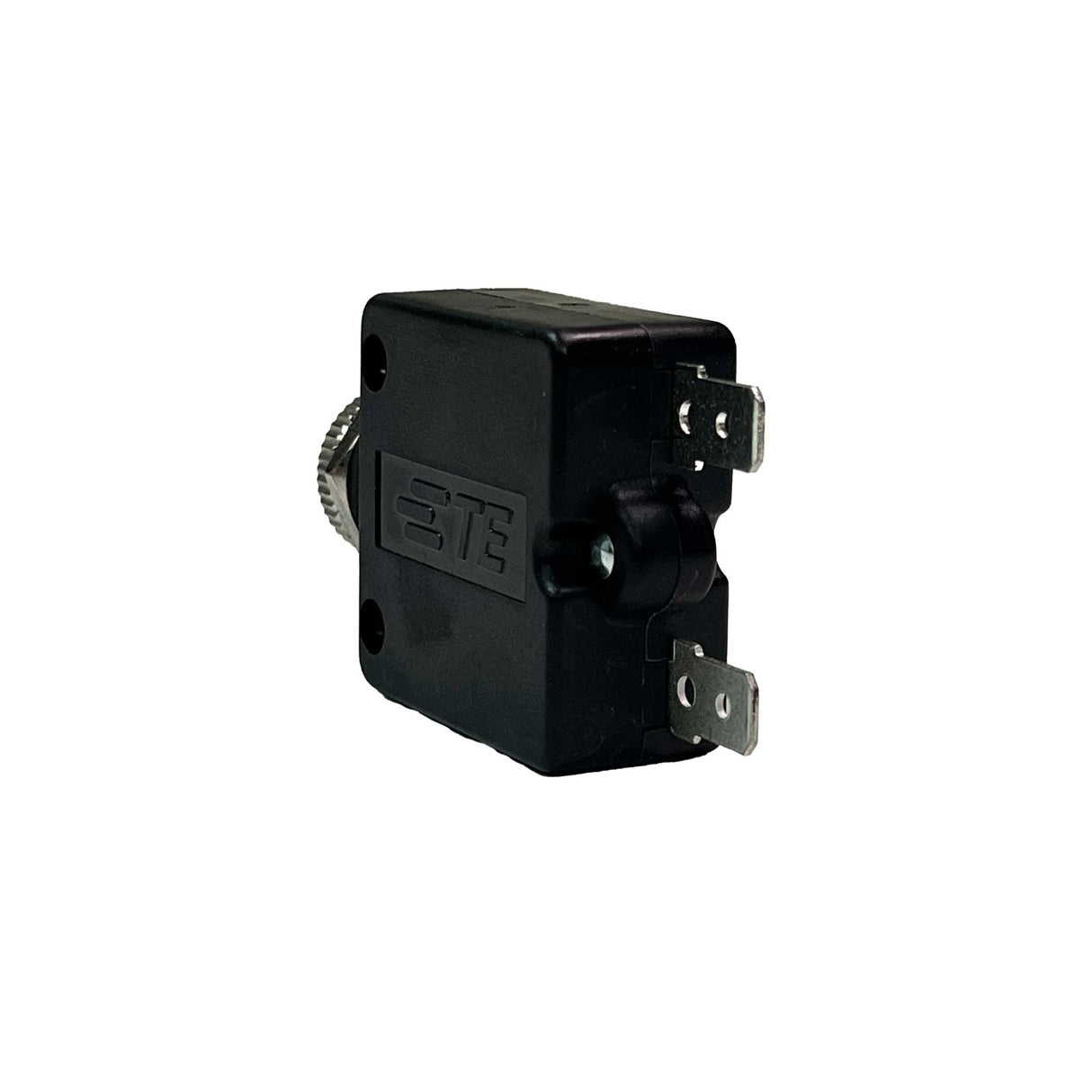

Termination Type: 0.25-inch straight quick-connect tabs
Mounting: Panel mount with 7/16 x 0.5-inch bushing, includes knurled or hex nut
Button Color: White with red rate marking and red trip band
Cutout Size: Fits panel cutout diameter of 0.44 to 0.45 inches
Poles: Single pole
Circuit Function: Series trip
Built to meet the high standards of PowerTech Generators, this breaker ensures reliable protection and long-lasting performance in demanding conditions.
4 amp Reset Breaker is backordered and will ship as soon as it is back in stock.
